FRP Roofing Sheets

Roofing Sheet 1
Roofing Sheet
Roofing Sheet
Roofing Sheet
Roofing Sheet
Roofing Sheet
Roofing Sheet
Roofing Sheet
Specification For FRP Roofing Sheets
  • Corrugations: Available as per requirements
  • Length: 1.00 mtr and above as per customer requirement.
  • Width: Standard as per different corrugation type.
  • Thickness: 1.0 mm and above with increment of 0.5mm. Allowable tolerance +/-10%.
  • Colours: Clear Translucent, Green, Blue, Milky White and Opaque colours
  • Textures: Crinkle Glass Effect, Decorative cloth embedded and other special designs.
Advantages of FRP Roofing Sheets
  • Transforms harsh sun rays into soft, diffused, glare-free light.
  • Provides day-light for efficient and comfortable working condition.
  • With its ultra-violet barrier reflects 80% of the heat rays.
  • Can be easily installed with conventional fixings. No special skill required. Saw it, drill it and fix it
  • Is tough and robust, can withstand all regular wear-n-tear and vandalism
  • Can withstand extremes of climates
  • Is available in exciting wild or soft colours with beautiful decorative embedded designs.
Enquire Now

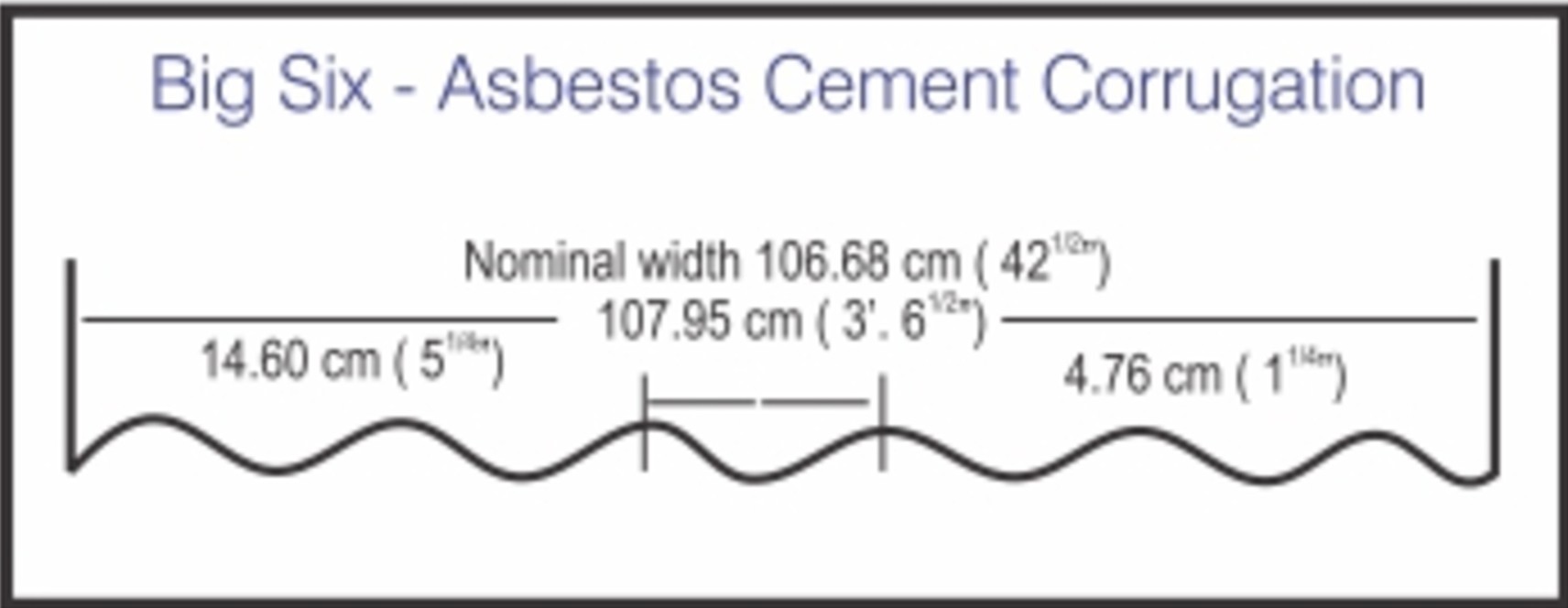

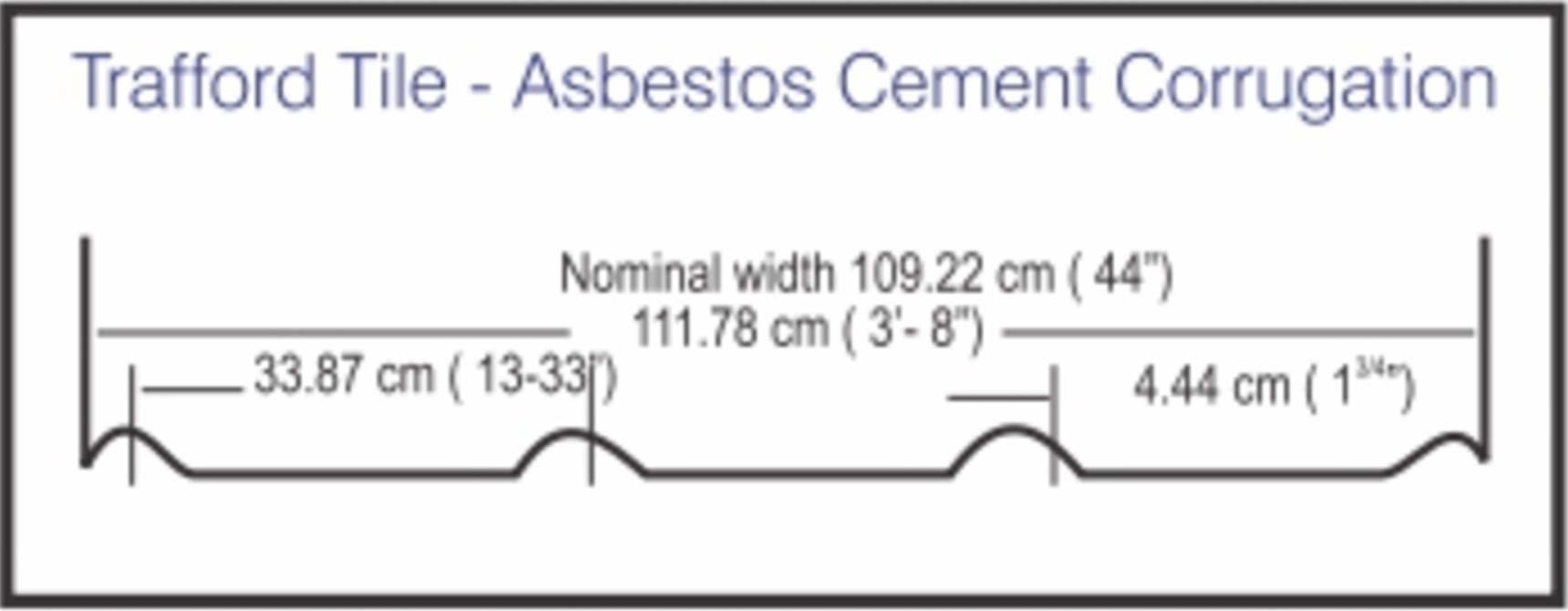

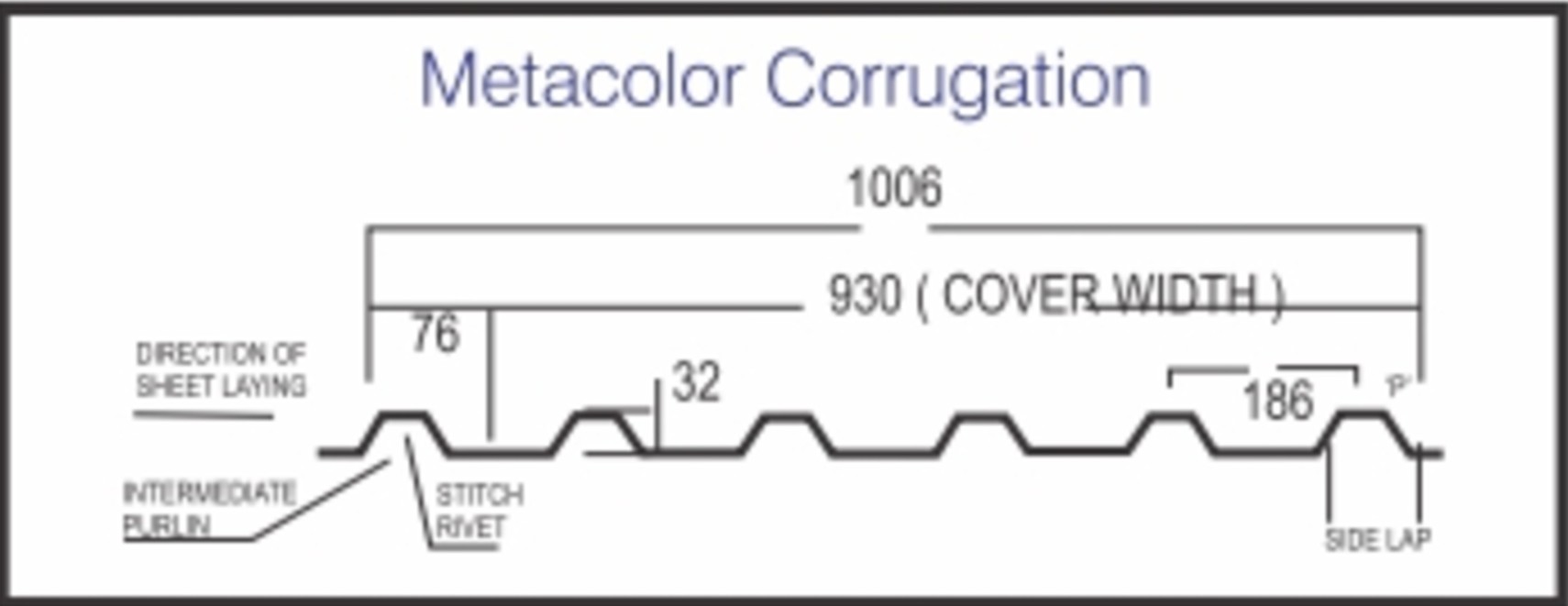

Standard Corrugations

General properties as Tested and Approved

Test Results

  • Thickness: 1.1mm
  • Tensile Strength: 1145 kg/cm²
  • Punch Shear Test (on longitudinal test pieces):
    • Diameter of Punch: 12.7mm
    • Breaking Load (average of five tests): 196kg
    • Shearing Stress (average of five tests): 1286 kg/cm²
  • Impact Strength (edgewise): 69.6 kg·cm (Izod type machine, specimen ½"x½")
  • Transverse Strength: 240 lbs (ASTM D-1502-60, span of 24", load at quarter points)

Roofing Accessories

Image 1

Eaves Gutter

Image 2

Valley Gutter

Image 3

Ridge

Image 4

North Light Curve

Image 5

Curve Roof Sheet
